Custom Hydraulic Diaphragm Metering Pump Manufacturers

At Jiangsu Syeelai Environmental Technology Co., Ltd., hydraulic diaphragm metering pumps are one of our core Metering Pump technologies. As a Custom Hydraulic Diaphragm Metering Pump supplier in China, we design and build this pump family for process duties where sealing integrity, accurate dosing and operator safety cannot be compromised. We are a manufacturing enterprise integrating R&D, production, sales and service, and we supply hydraulic diaphragm pumps as individual units or as part of engineered chemical dosing and fluid handling systems.

Hydraulic Diaphragm Metering Pumps: Position in the Pump Family

Hydraulic diaphragm metering pumps are positive displacement pumps in which a plunger pressurizes hydraulic oil behind a diaphragm, and the diaphragm displaces the process fluid. The hydraulic balance system protects the diaphragm from excessive stress and gives the pump a predictable, repeatable stroke action. Compared with plunger pumps, there is no packed gland around the process plunger; compared with mechanically actuated diaphragm pumps, the hydraulic drive provides smoother force distribution and more stable discharge at high pressure.

That design makes the pump family especially suitable for toxic, flammable, abrasive or otherwise hazardous chemicals, where even small leaks are unacceptable. The table below shows how each configuration in our range is positioned.

How the Main Metering Pump Technologies Compare

• Plunger Metering Pump: suitable where high discharge pressure and medium compatibility permit a packed plunger; sealing components require regular attention.
• Mechanical Diaphragm Metering Pump: compact and economical for low-to-medium pressures and moderate chemical service.
• Hydraulic Diaphragm Metering Pump: preferred for heavy-duty, high-pressure, high-integrity dosing where leakage must be minimized and diaphragm life matters.

Our Hydraulic Diaphragm Metering Pump Range

We offer six hydraulic diaphragm pump series, each engineered around a different duty envelope. This lets us match the hydraulic end, drive, pressure rating and control approach to the specific process rather than forcing one frame into every project.

These series are the hydraulic diaphragm pump range we currently offer. Each pump is configured around your flow rate, discharge pressure, medium and operating pattern, so the series is the starting point rather than a fixed catalog item.

Application Fit Across Process Industries

We supply hydraulic diaphragm metering pumps to chemical processing, environmental protection, water treatment, electroplating, new energy and pharmaceutical projects. They are commonly used for acid, alkali, coagulant, flocculant, pH adjustment, scale inhibitor, corrosion inhibitor and additive dosing.

• Chemical: accurate reagent addition, process additive injection and reactor feeding.
• Water Treatment: coagulant, flocculant, pH control and biocide dosing.
• Electroplating: bath additive and pH correction with corrosion-resistant wetted parts.
• New Energy: electrolyte or precursor dosing where flow stability is critical.
• Pharmaceutical: repeatable small-volume addition under documented quality control.

Because we also manufacture liquid mixers, chemical pumps, filters and dosing accessories, we can package the hydraulic diaphragm pump as part of a complete mixing and dosing solution rather than supplying an isolated pump unit.

Materials, Critical Specifications and Selection Inputs

Hydraulic diaphragm metering pump selection starts with the fluid, not the frame. Wetted materials are chosen for chemical compatibility, temperature, pressure and purity requirements. The same pump frame can be configured with different liquid ends, valve materials and diaphragm materials to suit the actual medium.

For abrasive media, we review particle size and concentration; for polymerizing or crystallizing liquids, we consider flushing and purging requirements. These inputs directly affect the liquid end design, stroke length, stroking speed and pressure rating. The critical specifications we work with include:

• Fluid name and concentration; pH, viscosity, specific gravity and solids content.
• Temperature, vapor pressure and tendency to crystallize, polymerize or gas out.
• Required flow at rated pressure and the turndown range needed by the process.
• Suction and discharge conditions, including available NPSH.
• Wetted material restrictions, purity requirements and applicable chemical or pharmaceutical standards.
• Control signal and automation protocol for the dosing loop.

Controls, Auxiliaries and Line Integration

Our hydraulic diaphragm pumps can be supplied with manual stroke adjustment or integrated into automated control loops. We configure the control system around the interface you already use: analog signal, pulse input, frequency converter or PLC/DCS communication. This allows the pump to follow a process setpoint, receive remote start-stop commands and report running status without add-on engineering.

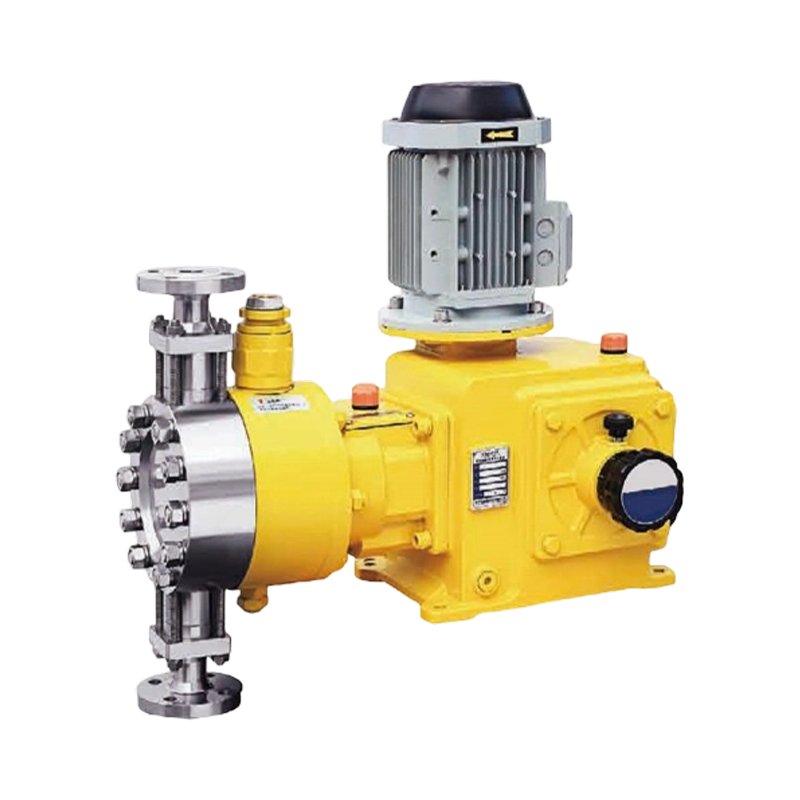

For dosing lines, we help specify the right accessories to protect accuracy and equipment: pulsation dampers, back-pressure valves, relief valves, calibration columns and injection assemblies. Our range also includes pumps with integrated relief valves, as in the JYB series, and double-diaphragm containment for added safety.

Quality Assurance, Testing and Traceability

Our factory in Jiangsu operates a full-chain standardized quality inspection system. Raw materials are sampled and verified on arrival, fixed-point patrol inspections are performed during production, and finished pumps undergo full-performance verification. Complete inspection data is kept throughout the process and remains traceable, which supports both plant acceptance procedures and future spare-part identification.

For serial production and custom projects, we maintain in-process records, hydraulic test results and component traceability. This documentation is organized so that the quality file you need for project acceptance can be prepared from verified plant data.

Installation, Maintenance and Project Support

We provide remote diagnosis, on-site guidance and after-sales maintenance as part of our service model. Each project is logged in an exclusive service file, and we proactively track operating status to help production lines run continuously. For larger packages, we support installation and commissioning of customized chemical dosing devices and non-standard filtration or fluid transfer systems.

Replacement diaphragms, valves and seals are identified from the pump serial record, so spare parts can be matched without re-engineering. We also make product brochures, selection manuals and technical documentation available to help your installation team prepare piping, foundations and utilities.

Information We Use to Configure Your Solution

To prepare a configuration and quotation, our technical team works from the process data that defines your dosing duty. The more precisely you describe the fluid and operating envelope, the closer the pump selection will be on first pass.

• Process fluid: composition, concentration, temperature, pH, viscosity, specific gravity, solids size and concentration.
• Duty point: normal flow, maximum and minimum flow, discharge pressure, suction pressure and required turndown.
• Operating pattern: continuous, intermittent, starts per hour and any batch sequencing requirements.
• Wetted material and purity requirements; food, pharma or chemical standard constraints.
• Control and monitoring: manual, 4–20 mA, pulse, Modbus/Profibus or PLC/DCS signal; need for diaphragm leak detection.
• Utilities and site conditions: available power supply, ambient temperature, area classification and noise limits.
• Installation scope: pump only, skid-mounted dosing package, or complete mixing and dosing system with tank, mixer, filters and piping.

We use this information to define the pump series, hydraulic end, materials, accessories and control interface. The result is a project-specific proposal rather than a generic catalog selection.

Frequently Asked Questions

What is the main advantage of a hydraulic diaphragm metering pump over a plunger pump?

The process medium is separated from the plunger by a hydraulic oil system and diaphragm. There is no packed gland in contact with the chemical, which reduces leak paths and makes the pump suitable for toxic, corrosive or abrasive fluids. The hydraulic balance system also protects the diaphragm from mechanical overload.

Which series should I choose for high-pressure injection?

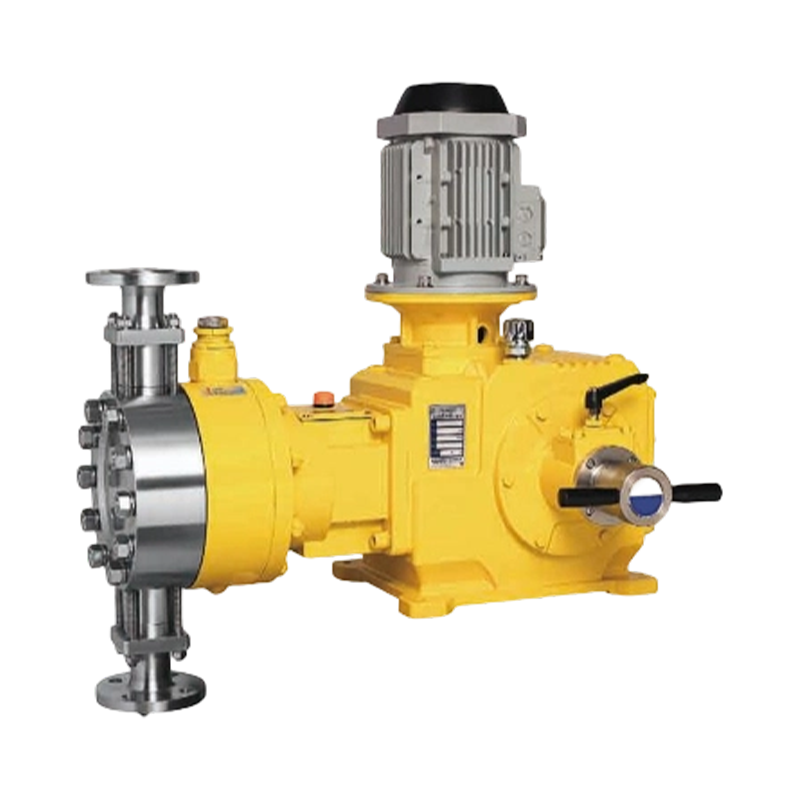

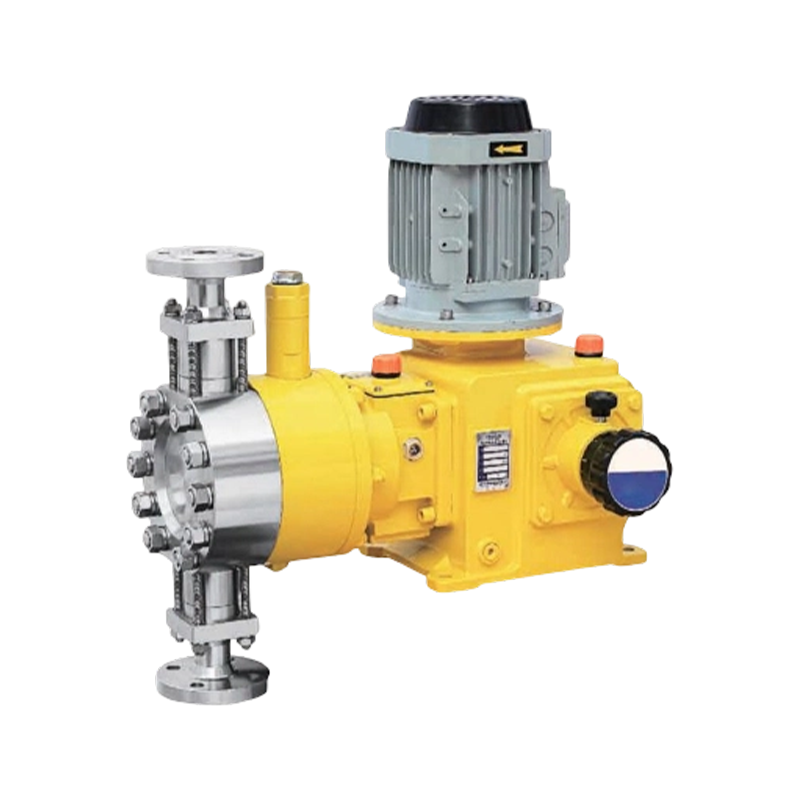

The JYD Series High-Pressure Hydraulic Diaphragm Pump and JYZ Series Heavy-Duty Hydraulic Diaphragm Pump are typical starting points. We confirm the pressure rating, flow and duty cycle after reviewing your suction and discharge conditions. Send us the required pressure and line size so our technical team can match the hydraulic end and drive.

How do I specify a pump for a new dosing line?

Provide the fluid name and concentration, flow range, discharge pressure, and any site constraints. If the pump is part of an automated skid, include the control signal type and whether you require diaphragm leak detection, pulsation damping or back-pressure control. We prepare the configuration, datasheet and quotation from those inputs.

Can you build the pump as part of a complete chemical dosing system?

Yes. We manufacture liquid mixers, chemical pumps, filters, valves and accessories, and we undertake design, installation and commissioning of customized dosing devices and non-standard chemical filtration or transfer systems. We can package the hydraulic diaphragm pump with a tank, agitator, pulsation damper, back-pressure valve and control panel.

How is pump quality documented?

We perform raw material sampling and verification, fixed-point patrol inspections during production, and full-performance verification of finished products. Inspection data is retained for traceability and can be organized for your acceptance documentation.

What support do you provide after delivery?

Our 24/7 responsive service covers remote diagnosis, on-site guidance and after-sales maintenance. We establish a service file for each project, track equipment status, and coordinate spare parts from serial records. For international deliveries, we use industrial-grade protective packaging and synchronize logistics to keep the pump safe in transit.
