Custom Metering Pump Accessories Manufacturers

At Jiangsu Syeelai Environmental Technology Co., Ltd., the Custom Metering Pump Accessories  range covers the components that make chemical dosing predictable: pulsation dampers, Y-type strainers, flow calibration columns, and pressure-management valves. Based in Yixing, Jiangsu, China, we engineer these accessories for corrosive, hazardous, and high-purity fluids, and we supply them as separate units or as part of a complete dosing skid.

Because we also manufacture the Metering Pump family, our accessory designs are developed with pump hydraulics in mind. The dampers and calibration components we deliver are matched to the discharge profile and wetted materials of the pump, which reduces trial-and-error during startup.

The Accessories Range

This category includes the following product families. We supply each one with material options, connection sizes, and mounting arrangements adapted to the application.

Pulsation Damper: Primary Child Category

The Custom Pulsation Dampers for Pumps Suppliers subcategory is the heart of this accessories range. Reciprocating metering pumps produce one pressure peak per stroke, and uncontrolled peaks disturb flowmeter signals, hammer pipe joints, and reduce diaphragm life. Our task is to size the damper so the line sees steady flow rather than individual pulses.

• Air chamber dampers use a gas volume in direct contact with the liquid. They are simple and effective for many plastic pipelines and moderate process conditions.
• Diaphragm and bladder dampers separate the gas charge from the liquid, which suits aggressive chemicals, higher pressures, and processes that cannot tolerate gas pickup.
• For high-pressure duties, our SUS316L bladder damper with HNBR or EPDM bladder is designed for elevated working conditions.

Material Compatibility and Configuration

Material selection starts with the chemical and its operating temperature. We use PVC, PP, PVDF, SUS304, and SUS316L for wetted shells, and choose FPM, EPDM, or HNBR diaphragms according to compatibility with the process fluid. The same accessory can therefore be supplied in plastic for a hydrochloric acid dosing line or in stainless steel for high-pressure process water.

We confirm connection size, flange standard, and mounting orientation before manufacturing. Threaded, socket, and flanged connections can be arranged, and the damper body can be configured for vertical or horizontal installation where the piping layout requires it.

Performance Considerations and Accuracy

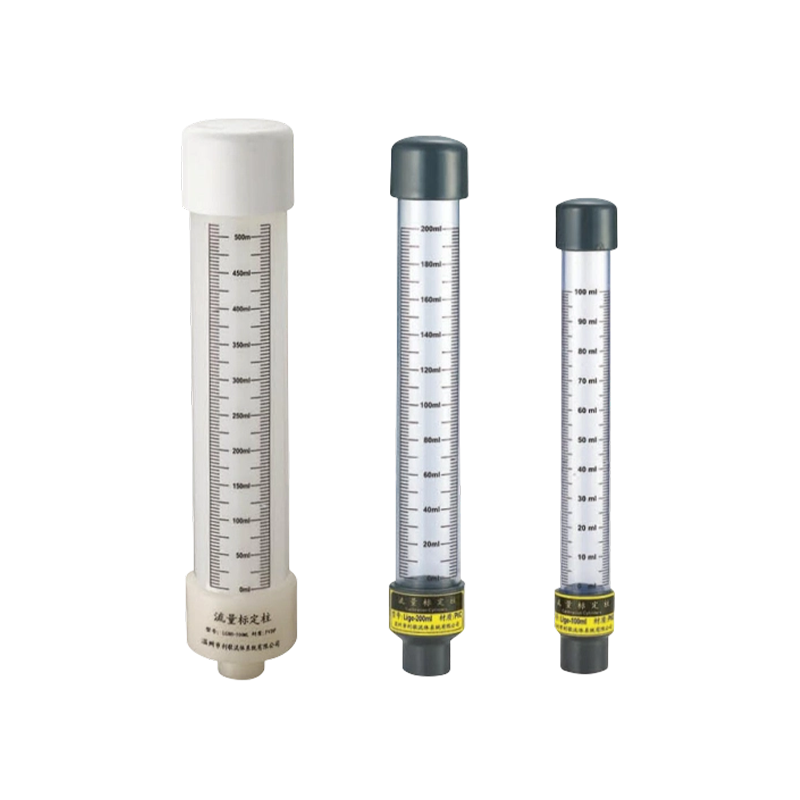

Dampers affect system accuracy because they smooth the flow profile that the flowmeter and controller see. We select the damper volume and pre-charge based on the pump flow rate, stroke frequency, and discharge pressure. For calibration duty, the flow calibration column gives operators a simple, visual method of checking whether the pump actually delivers the commanded flow.

This combination is especially useful for dosing skids where chemical consumption must be documented, for automated control loops that rely on stable pressure, and for processes where a blocked or fouled line could affect product quality.

Application Fit

• Water and wastewater treatment: coagulant, pH correction, polymer, and hypochlorite dosing lines.
• Electroplating and surface treatment: steady additive feed for process baths and automatic bath dosing.
• Chemical and petrochemical: acid, alkali, and solvent handling with corrosion-resistant wetted parts.
• Pharmaceutical and new energy: precise reagent addition and stable flow in high-purity process loops.

Engineering, Integration and Installation

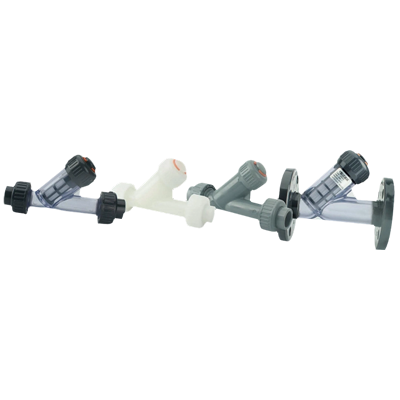

We support the accessory selection with the surrounding system in mind. On a complete dosing skid, the pulsation damper is placed close to the pump discharge, followed by the back-pressure valve and then the injection point. A Y-type strainer on the suction side protects the pump, and a flow calibration column parallel to the discharge line gives a quick method for verifying output.

Where the customer uses a PLC or variable-speed drive, we ensure the accessory set is compatible with the control architecture. The key is that pressure stability does not interfere with stroke adjustment, analog flow control, or process interlocks. During installation and commissioning, our team can guide orientation, pre-charge, and startup sequence.

Quality Assurance and Project Support

Our factory applies a full-chain standardized inspection procedure: raw materials are sampled and verified on arrival, fixed-point patrol inspections are carried out during production, and finished accessories receive performance verification before packing. Complete inspection data is retained for traceability.

We pack accessories in industrial-grade protective packaging suitable for road and sea transport, and we coordinate logistics milestones to avoid damage to threads, flanges, and elastomer parts. After delivery, our support team provides remote diagnosis, on-site guidance, and after-sales maintenance, and we keep a service file for follow-up.

Information We Use to Configure Your Solution

To prepare a configuration and quotation, we need the operating data around the pump and the pipeline. The most useful inputs are:

• Pump model or type (mechanical diaphragm, plunger, hydraulic diaphragm) and rated capacity.
• Normal and maximum flow rate, stroke frequency, and expected turndown.
• Discharge pressure, system back pressure, and distance to the injection point.
• Medium composition, concentration, temperature, specific gravity, and viscosity.
• Connection size and style: threaded, socket, or flanged, plus flange standard.
• Any restriction on wetted materials, elastomer type, or required approvals.
• Control signal if the pump is automated: 4-20 mA, frequency converter, PLC interlock.
• Target pulsation level or flowmeter accuracy requirement.
• Installation environment and available mounting space.

Frequently Asked Questions

Which pumps need accessories from this range?

Any reciprocating metering pump, including mechanical diaphragm, plunger, and hydraulic diaphragm types, benefits from a pulsation damper at the discharge. Y-type strainers and flow calibration columns are standard components on dosing skids where solids, flow verification, or process reliability matter.

What is the difference between an air chamber damper and a diaphragm or bladder damper?

Air chamber dampers use a gas volume in direct contact with the liquid; they are simple and economical for plastic systems. Diaphragm and bladder dampers place an elastomer between the gas and liquid, which prevents gas absorption and is better for aggressive chemicals or high-pressure applications.

Which materials can be used for corrosive chemicals?

Shells can be selected from PVC, PP, PVDF, SUS304, and SUS316L. Diaphragm and bladder materials include FPM, EPDM, and HNBR. We match these to the medium composition, concentration, and temperature during proposal preparation.

Can you integrate accessories into an existing dosing skid?

Yes. We need the pump model, operating pressure, connection size, and control interface; we then propose the correct damper, strainer, and calibration column, and coordinate installation and commissioning support.

What information do you need for a quotation?

Send the pump type and capacity, normal and maximum flow rate, discharge pressure, medium and temperature, connection type, and layout constraints. With these, we prepare a product-specific configuration and quotation.
