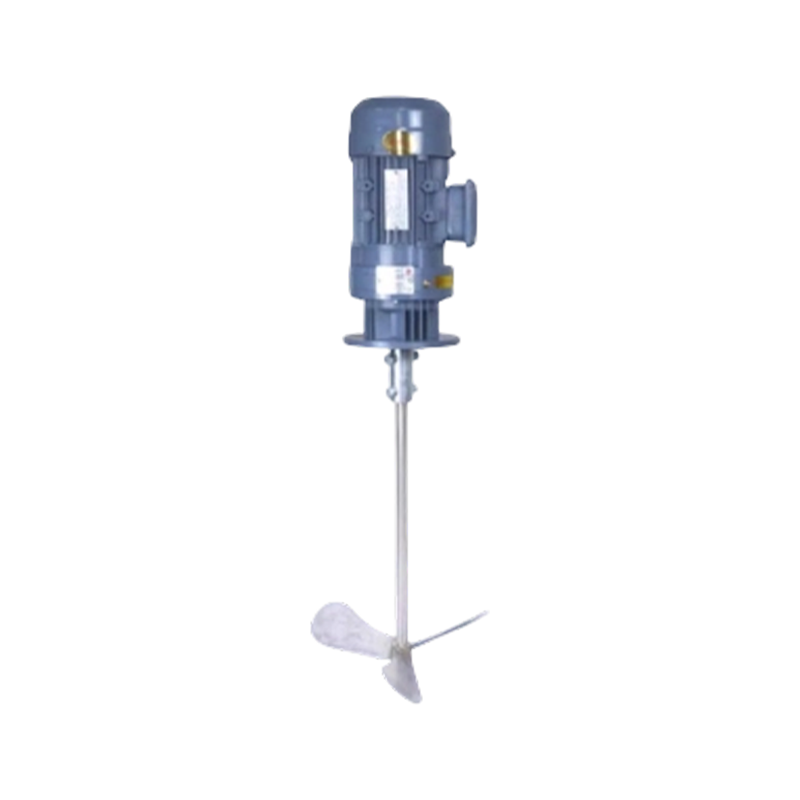

Type BLD Cycloidal Pinwheel Transmission Mixer
Product Overview:
Utilizing the planetary transmission principle, the Type BLD Mixer features a cycloidal pinwheel speed reducer. This model is engineered for heavy-duty industrial mixing that requires high reduction ratios and exceptional torque density in a compact footprint.
- Features
- Attributes
- Contact Form
- Download
Key Features & Advantages:
Superior Transmission Efficiency: The rolling friction design minimizes energy loss, often achieving efficiency above 90%.
Compact & Space-Saving: Provides high output torque in a significantly smaller size compared to traditional gearboxes.
Smooth Operation: Multi-tooth engagement ensures low noise levels and minimal vibration during high-load mixing.
Overload Resilience: Highly resistant to mechanical shock, extending the service life under rigorous conditions.
| Size | Contour Dimensions (mm) | Installation Dimensions (mm) | Size of Shaft End (mm) | Weight | ||||||||||||||||
| H | M | J | E | F | G | N | P | Q | R | S | B | C | D | L | B | C | D | Y | ||
| BL.BLD09-9 | ||||||||||||||||||||
| B09 | 142 | 160 | 35 | 10 | 11 | 4 | 110 | 134 | 3 | M5 | 6 | 24.5 | 22 | 30 | 5 | 17 | 15 | 22 | BL weight + Motor weight |
|
| B0 | 165 | 190 | 39 | 10 | 11 | 4 | 140 | 160 | 3 | M8 | 8 | 33 | 30 | 35 | 5 | 17 | 15 | 22 | ||
| B1 | 194 | 230 | 61 | 12 | 11 | 6 | 170 | 200 | 4 | M10 | 10 | 38 | 35 | 46 | 6 | 20.5 | 18 | 35 | ||
| B2 | 246 | 260 | 70 | 15 | 11 | 6 | 200 | 230 | 4 | M10 | 14 | 48.5 | 45 | 61 | 6 | 24.5 | 22 | 40 | ||
| B3 | 294 | 340 | 80 | 20 | 13 | 6 | 270 | 310 | 5 | M12 | 16 | 59 | 55 | 74 | 8 | 33 | 30 | 55 | ||
| B4 | 370 | 400 | 100 | 22 | 15 | 8 | 320 | 360 | 5 | M12 | 20 | 74.5 | 70 | 92 | 10 | 38 | 35 | 62 | ||
| B5 | 438 | 490 | 115 | 30 | 18 | 12 | 400 | 450 | 5 | M16 | 25 | 95 | 90 | 108 | 14 | 48.5 | 45 | 70 | ||
| B6 | 528 | 580 | 139 | 35 | 22 | 12 | 460 | 520 | 8 | M20 | 28 | 106 | 100 | 130 | 14 | 53.5 | 50 | 80 | ||
| B7 | 578 | 650 | 182 | 40 | 22 | 12 | 520 | 590 | 10 | M24 | 28 | 116 | 110 | 142 | 16 | 59 | 55 | 90 | ||
| B8 | 814 | 880 | 210 | 50 | 38 | 12 | 680 | 800 | 10 | M30 | 32 | 137 | 130 | 202 | 20 | 74.5 | 70 | 120 | ||
| B9 | 1151 | 1160 | 370 | 60 | 39 | 8 | 900 | 1020 | 10 | M42 | 45 | 190 | 180 | 320 | 25 | 95 | 90 | 150 | ||
Whether you want to become our partner or need our professional guidance or support in product selections and problem solutions, our experts are always ready to help within 12 hours globally.
